HANDI-VAC® Squeeze Bulb Kit With 4 Probes And Vacuum Cups
[HV-KIT-B]

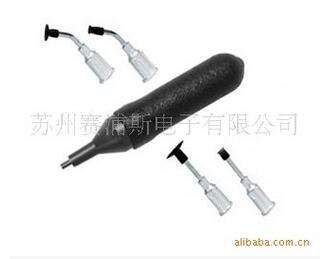

HANDI-VAC KIT, Static dissipative, with static dissipative Buna-N vacuum cups. (1) 1/8" and (1) 1/4" vacuum cups on bent probes and (1) 1/8" and (1) 3/8" vacuum cups on straight probes. Our vacuum-bulb type tools are the lowest cost pick-and-place tools available. .

Our HANDI-VAC kits are a low cost pick-and-place tool that can go in everybody’s tool box. These tools are simple to operate:
1.    Select a tip with a rubber vacuum cup on a probe that is slightly smaller than the part you want to pick and place.  Put the probe snuggly on the tip of the HANDI-VAC tool.  Make sure that there is no dust on the rubber vacuum tip.  NOTE: Our larger rubber vacuum cups can be placed directly on the HANDI-VAC tip without using a probe.
2.    Gently squeeze the HANDI-VAC bulb, place the soft suction cup squarely on the pick-and place part, then relax your squeeze. The part is now firmly gripped.
3.    Move the part to where you need it and a second squeeze of the bulb releases the part.

Applications for this tool include SMT parts, metal parts, plastic parts or any item having a smooth-nonporous-surface that the rubber vacuum tweezer tip can seal against.  This tool can be used with any of our rubber vacuum cups ranging in size from 3/32” (2.38mm) to 3/4” (19.05mm) in diameter.  Use the larger cups to pick up larger and heavier parts.   For better precision in part placement see our PEN-VAC or PEN-VAC PRO-Series self contained vacuum pens.
