AV-6000-220

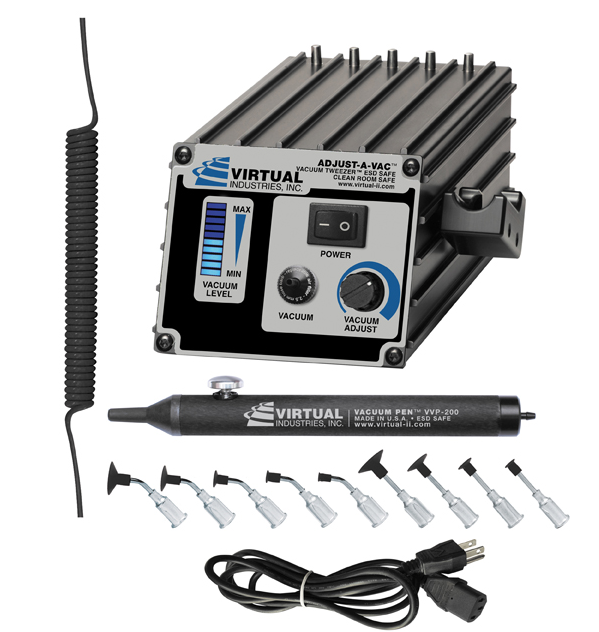

This VACUUM TWEEZER™ allows the operator to adjust the vacuum level from just below atmospheric pressure to up to ten inches of mercury depending on the fragility of the part being handled. An integrated ten segment bar-graph-display visibly shows the vacuum level present during handling operations. The bar graph will show minimum vacuum pressure until a part is grasped and then the bar graph displays the vacuum level presented to the part being handled. Additionally, the vacuum port integrates a user replaceable inlet filter that protects operation of the tool from dust particles. Kits are available in 110 or 220 volt operation.
These ESD-SAFE kits feature:
Five vacuum tip holders on top of tool.
Bar graph power-on and vacuum-level indicator.
Adjustment knob for vacuum level.
Rubber no-skid feet.
ESD ground connection is by three wire power cord.
Produces vacuum of up to ten inches of mercury.
Long life pump.
Side mounted handle holder.
Replaceable inlet filter (additional spare intake filter included.
Optional: Foot switch systems (FS models only).
Dimensions 8” X 3” X 3.5” (203mm X 76mm X 89mm).
Class 100 Cleanroom Safe
This kit includes:
COILED-VACUUM-HOSE-5 (VCH-2.5MM-5 BLACK)
PUSH-BUTTON-VACUUM-PEN (VVP-200-2.5MM)
VACUUM-CUP-KIT-9 (VCS-9-B)
3 WIRE POWER CORD
NO FOOT SWITCH OPTION AVAILABLE
这种真空TWEEZER′允许操作者根据被处理零件的脆弱性将真空度从刚好低于大气压调整到最多10英寸汞。一个集成的十段条形图显示直观地显示了在操作过程中出现的真空度。条形图将显示最小真空压力，直到抓取到一个部件，然后条形图将显示呈现给正在处理的部件的真空水平。此外，真空端口集成了用户可更换的进口过滤器，保护工具的操作免受灰尘颗粒的影响。工具包可在110或220伏操作。
这些ESD-安全工具包的特点：
工具顶部的五个真空尖端保持器。
条形图上电和真空度指示器。
真空度调节旋钮。
橡胶无滑脚。
ESD接地是用三线电源线。
产生高达十英寸汞柱的真空度。
长寿命泵。
侧面安装把手支架。
可更换的进口过滤器（包括额外的进气过滤器）。
可选：脚踏开关系统（仅限FS型号）。
尺寸8“X 3”×3.5英寸（203mm×76mm×89mm）。
100级洁净室安全
此套件包括：
真空-HOSE-5（VCH-2.5MM－5黑）
推挽式真空笔（VVP 200～2.5mm）
真空-CUC-KIT-9（VCS-9B）
3线电源线
无脚开关选项可用
